Promon Scope G3
PRODUCT
PRODUCT

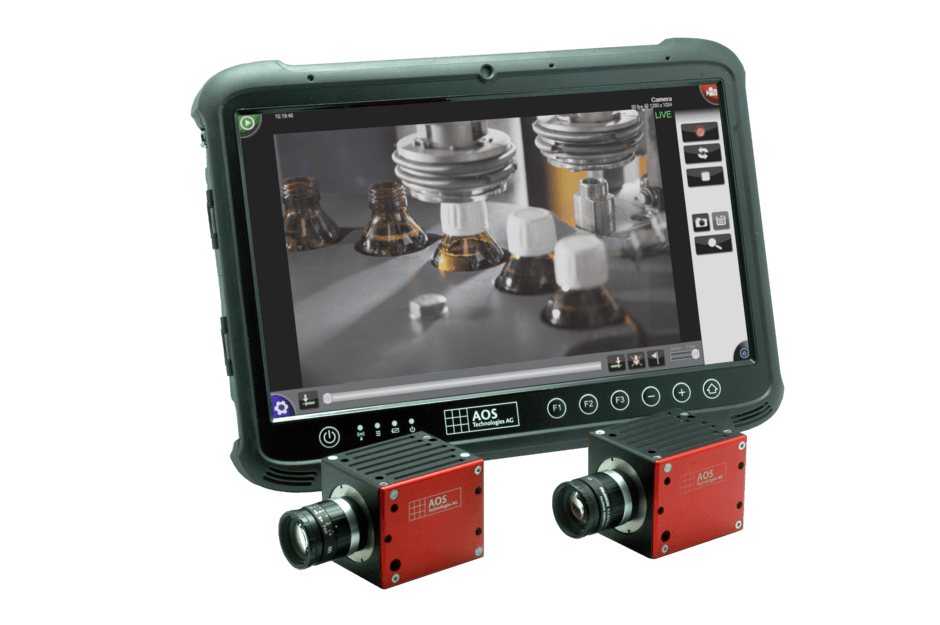

PROMON SCOPE G3
The PROMON SCOPE G3 is the next generation light and compact, ready-to-use high speed image streaming system - now also with support for two cameras
The PROMON SCOPE G3 Twin System offers you a complete new tool to troubleshoot a production line where cause and effect are not at the same place - with the two synchronized camera heads. With the built-in and replaceable Li-ion battery pack, the PROMON SCOPE G3 slow motion production analysis camera will operate up to 1.5h with two and up to 3.5h with one camera head without recharging. Its high capacity solid state disk system records sequences for 40 minutes with option to extend up to 80 minutes.
Key Features
- Supports two camera heads
- Ideal for temporary industrial troubleshooting, setup and
fine tuning applications
fine tuning applications
- Long battery live, up to 1.5h with two cameras connected,
over 3.5h with one camera
over 3.5h with one camera
- Compact, light and robust, ready to use high speed image streaming system
- Brilliant sunlight readable display, touchscreen operation, similar to a Tablet PC
- Typical recording capacity is 40 minutes,
optional 80 minutes
optional 80 minutes
- PROMON SCOPE G3 is available with monochrom,
color or NIR (near infrared) camera
color or NIR (near infrared) camera
- Twin Version, mix and match camera type
Highlights
- Two camera, synchronized or independent operation
- 40 minutes recording capacity per camera
- 80fps at 2048x1088 pixels
- 200fps at 1024x 800 pixels
- 560fps at 640 x 480 pixels
- max. frame rate of 3000fps
- Changeable battery pack
- 13,3" Display with Touchscreen
- Event Markers and Motion Detection
