PROMON Streamer

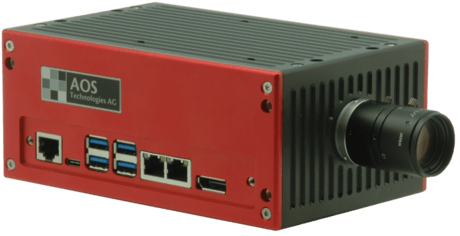

The PROMON STREAMER is a compact all-in-one long time high speed streaming system.
The compact footprint makes the Streamer a perfect system for permanent installation on a production line. Beside the high speed recording feature and the long time recording capabilities, the built-in I/Os allow control from PLC - so it’s ready when you need it. The versatile system is available in different variations such as built-in camera, with an additional external camera, or two external cameras. The control software is based on Imaging Studio v4, all features are easy configurable by the software.
Key Features
- Ideal for permanently installation
- Small footprint
- Long-Recording Highspeed Camera System
- AOS Imaging Studio v4 based control software
- Up to two independent cameras
- User configurable digital IO's for PLC communication
with the Streamer
with the Streamer
- Cost effective
Highlights
- Up to 30 minutes recording capacity in high speed
- 200 fps at 1280 x 1024 pixels
- 512 fps at 800 x 600 pixels
- 750 fps at 640 x 480 pixels
- max. frame rate of 4'000 fps
- User replaceable storage drive
- I/O Controllable with I/O mapping tool
- Motion Detection for Event Marking or trigger
- High capacity hard disk
(Up to 1 TB Storage per Camera head)
(Up to 1 TB Storage per Camera head)
- Mono or Color Camera or mixed
- Lenses, LED illumination, mounting solutions
- Motion analysis software with automatic
tracking features
tracking features
